Product benefits

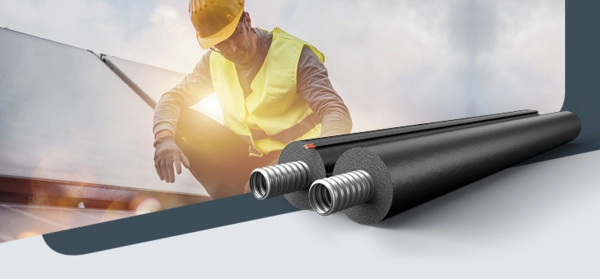

Reliable insulation and fast installation – these are two unbeatable advantages that Kaiflex Solar EPDMplus 2in2 combines, thereby greatly simplifying the installation of thermal solar systems. Kaiflex Solar EPDMplus 2in2 efficiently connects solar collectors, photothermal modules or heat pumps to the heat storage tank. At the same time, it minimises energy losses and keeps solar-heated water hot for longer. This is made possible by two flexible corrugated stainless steel pipes (VA) marked for supply and return flow, and already fitted with temperature and UV-resistant EPDM pipe insulation.

Compelling features

The insulation material is co-extruded with a coating foil that provides lasting protection from mechanical damage by outside weather effects. That makes this Kaimann product particularly robust. Thanks to its good thermal conductivity of λ40°C ≤0.042 W/(m·K) and high temperature resistance of +150 °C (+175 °C), Kaiflex Solar EPDMplus 2in2 is suitable for outdoor use.

Solar modules are incredibly efficient at absorbing solar energy. Under the right conditions, the temperature of the glycol-water mixture flowing through the module can reach more than +150 °C. Kaiflex Solar EPDMplus 2in2 covers the temperature range between +150 °C and –50 °C.  Regardless of the ambient temperature, the closed-cell synthetic rubber insulation retains its flexibility and full functionality, without melting or hardening as is the case with many other types of insulation. This ensures reliable insulation performance over the entire operational life of the system.

Simple to use

For correct connection to the heating system, the supply and return lines are marked by high-temperature-resistant sensor wires. The pre-insulated pipes can be separated easily, and doing so does not damage the insulation material in any way. Kaiflex Solar EPDMplus 2in2 is also particularly suitable for and easy to use in renovations.

Extensive accessories for metallic and flat sealing threaded connections, for installation and mounting, and Kaiflex special EPDM adhesive make the pipes fast and easy to install.

Read more
Read less

Product highlights

Piktogramm, UV

The outdoor solution

In outdoor applications, insulation is exposed to large temperature fluctuations, UV light , ozone and weathering. Kaiflex reliably withstands these influences.

Piktogramm, Verarbeitung, Schnell

Saving time

The right solution for every application and challenge: thanks to Kaiflex products optimised for installation, insulation is quick and easy.

Piktogram, Odolnost

Very good protection against damage

Mechanical influences can possibly deteriorate the performance of the insulation. Kaimann products are available with very robust jackets that protect the insulation from common causes of damage.

Documents

Download center

Insulation thickness calculator Kaicalc

Those who pay attention to careful planning, workmanship and quality in a project design, can avoid costly system malfunctions or even failures and can thus keep operating costs stable in the long term - or even reduce them sustainably. Decisive for this is both the choice of the right insulation material and the correct calculation of insulation thickness. Our insulation thickness calculator Kaicalc provides reliable support around the clock.
